Accessories

Customize the CellCelector™ to your requirements

There is a variety of exchangeable CellCelector labware adapters available for both the microscope stage (source) and the deck tray (destination). Adapters can also be custom-made to fit your specific application needs and specifications.

Microscope stage (source) adapters

The ALS CellCelector can isolate cells and colonies from a large range of labware formats ranging from well plates and Petri dishes (up to 100 mm) to  microscope slides and custom plates.
Catalog No.

Description
CC3001

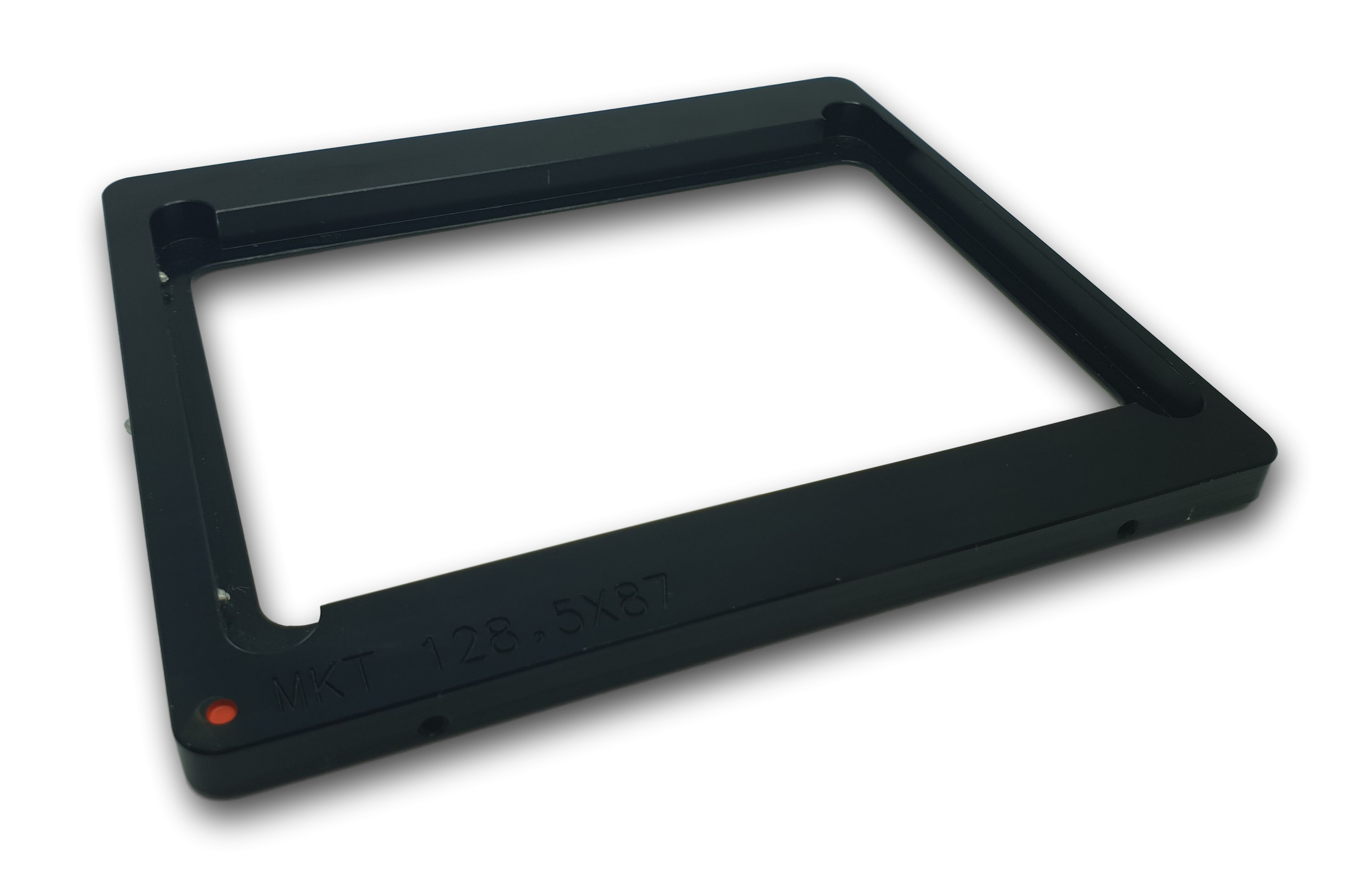

CC3001 Stage adapter Microplate
Stage adapter, Microplates
Adapter to place a standard (1, 6, 12, 24, 48, 96 or 384 well) microplate onto the microscope stage
CC3033

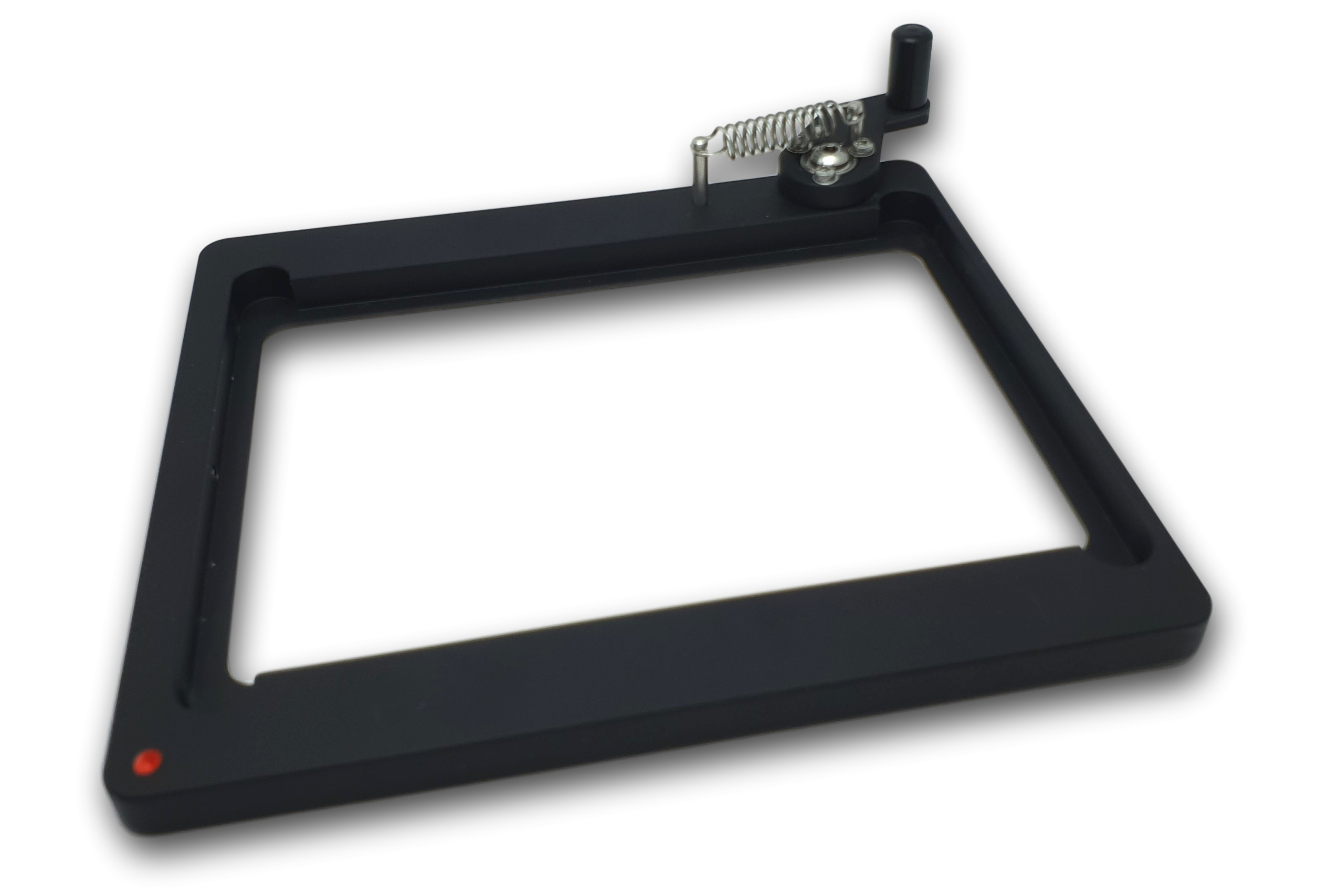

CC3033 Stage adapter Nanowell plate
Stage adapter, Microplates (Nanowell version)
Adapter to place a standard (1, 6, 12, 24, 48, 96 or 384 well) microplate as well as Nanowell plates onto the microscope stage;
(for our selection of Nanowell plates see the page Nanowell arrays)
CC3002

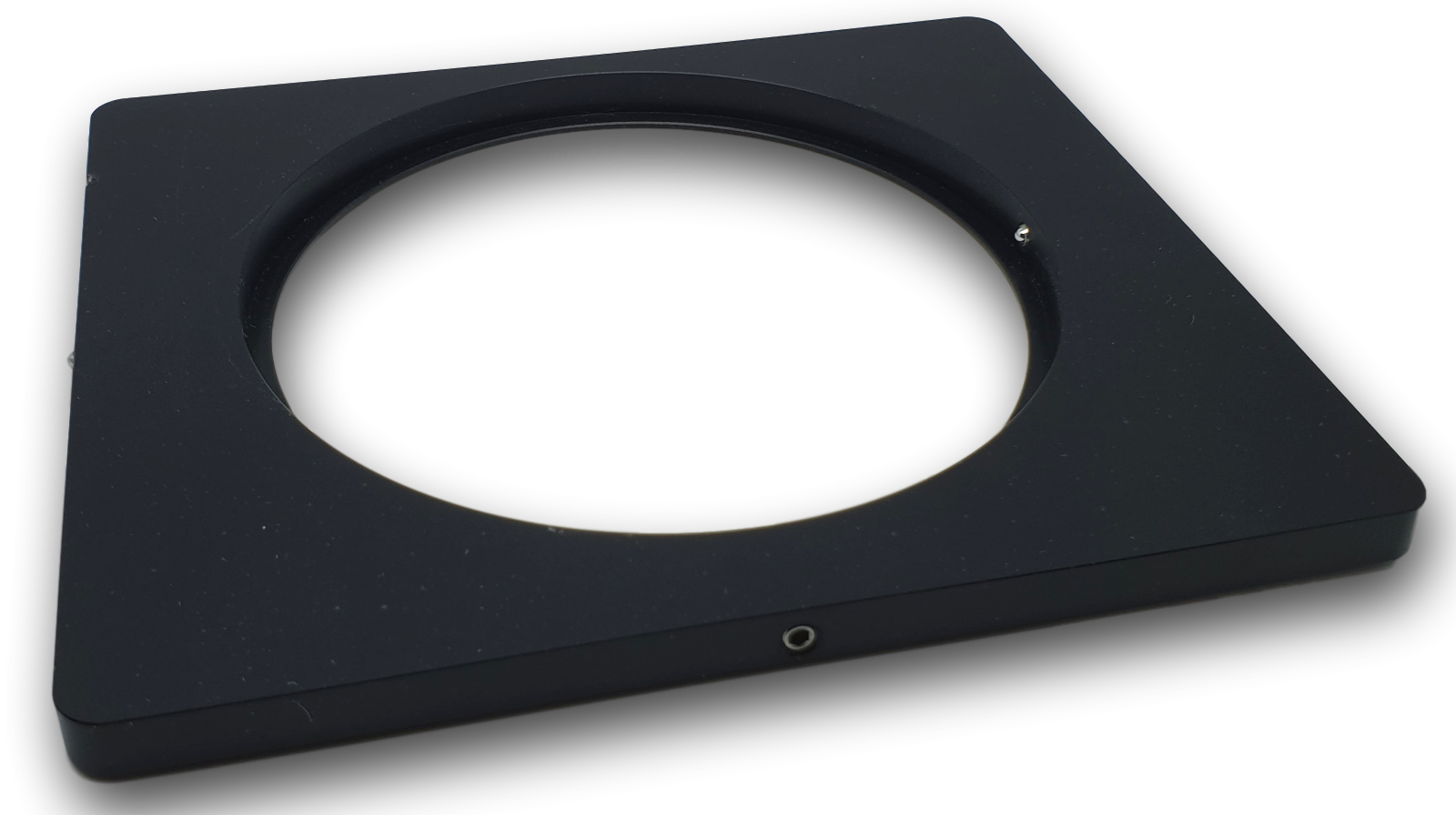

CC3002 Stage adapter Petri dish 100 mm
Stage adapter, Petri Dish Ø 100 mm
Adapter to place a Petri Dish with a diameter between 97 mm and 100.5 mm onto the microscope stage

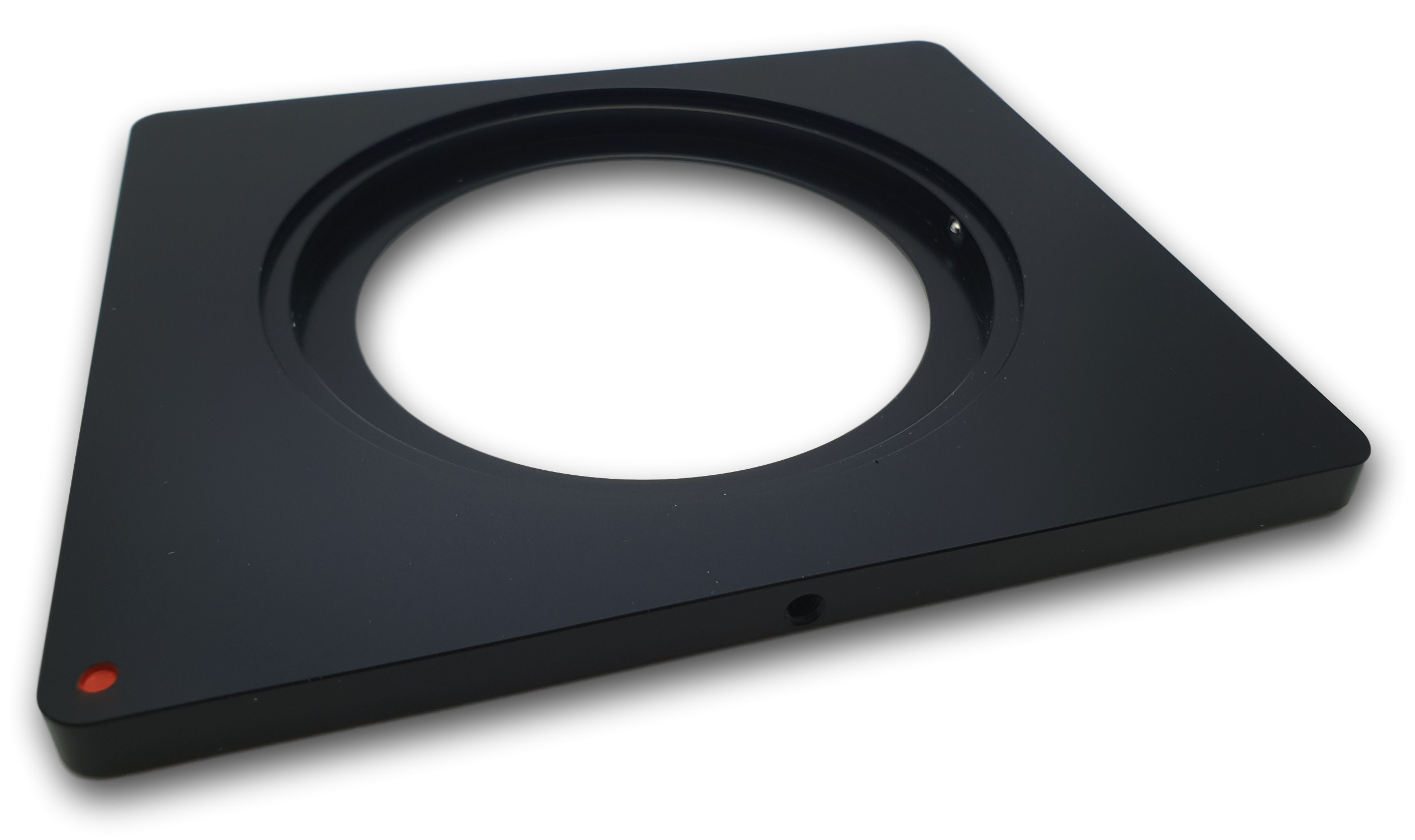

CC3009CC3009 Stage adapter Petri dish 93 mm
Stage adapter, Petri Dish Ø 93 mm
Adapter to place a Petri Dish with a diameter between 86 mm and 92.5 mm onto the microscope stage
CC3003

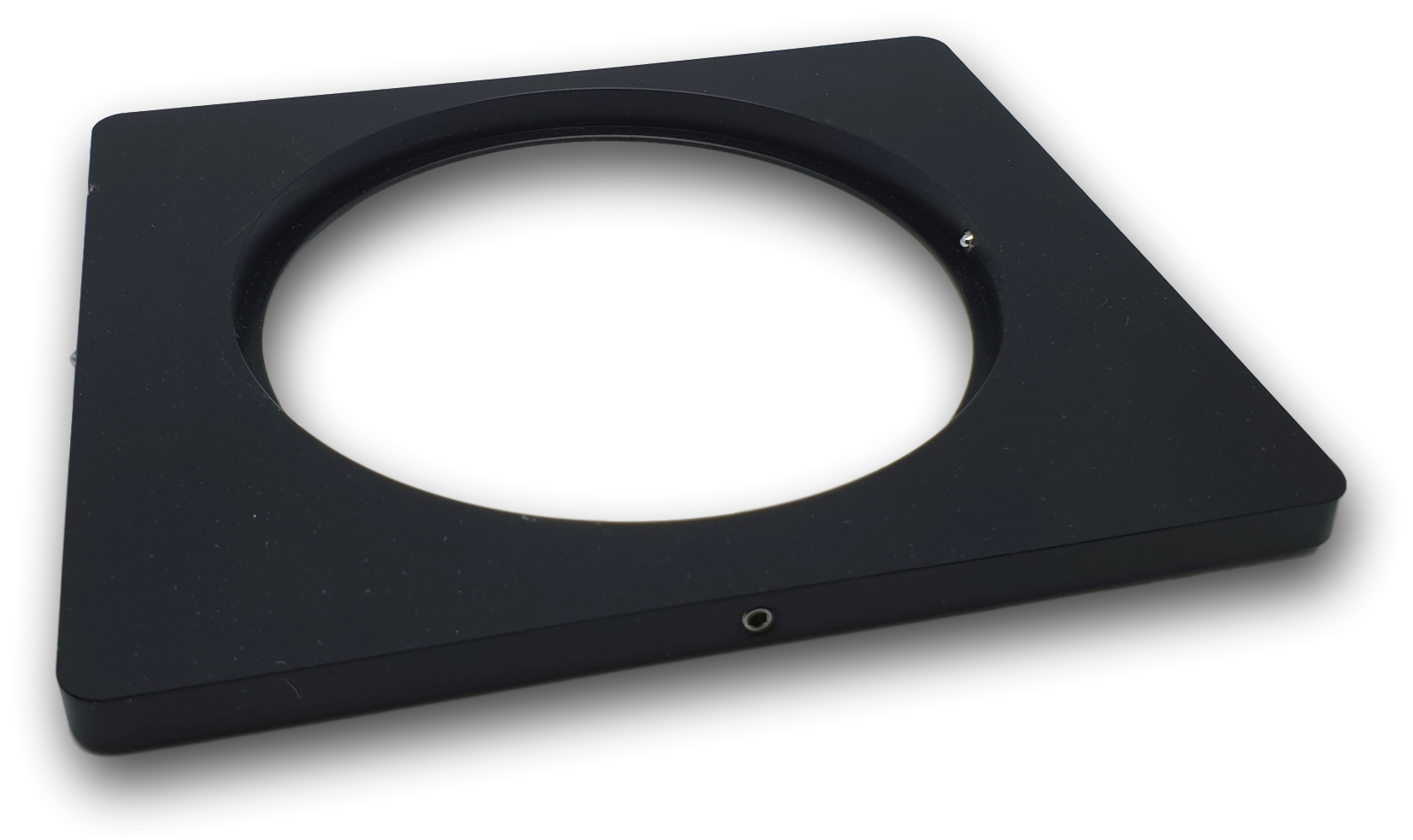

CC3003 Stage adapter Petri dish 90 mm
Stage adapter, Petri Dish Ø 90 mm
Adapter to place a Petri Dish with a diameter between 87 mm and 88.5 mm onto the microscope stage
CC3007

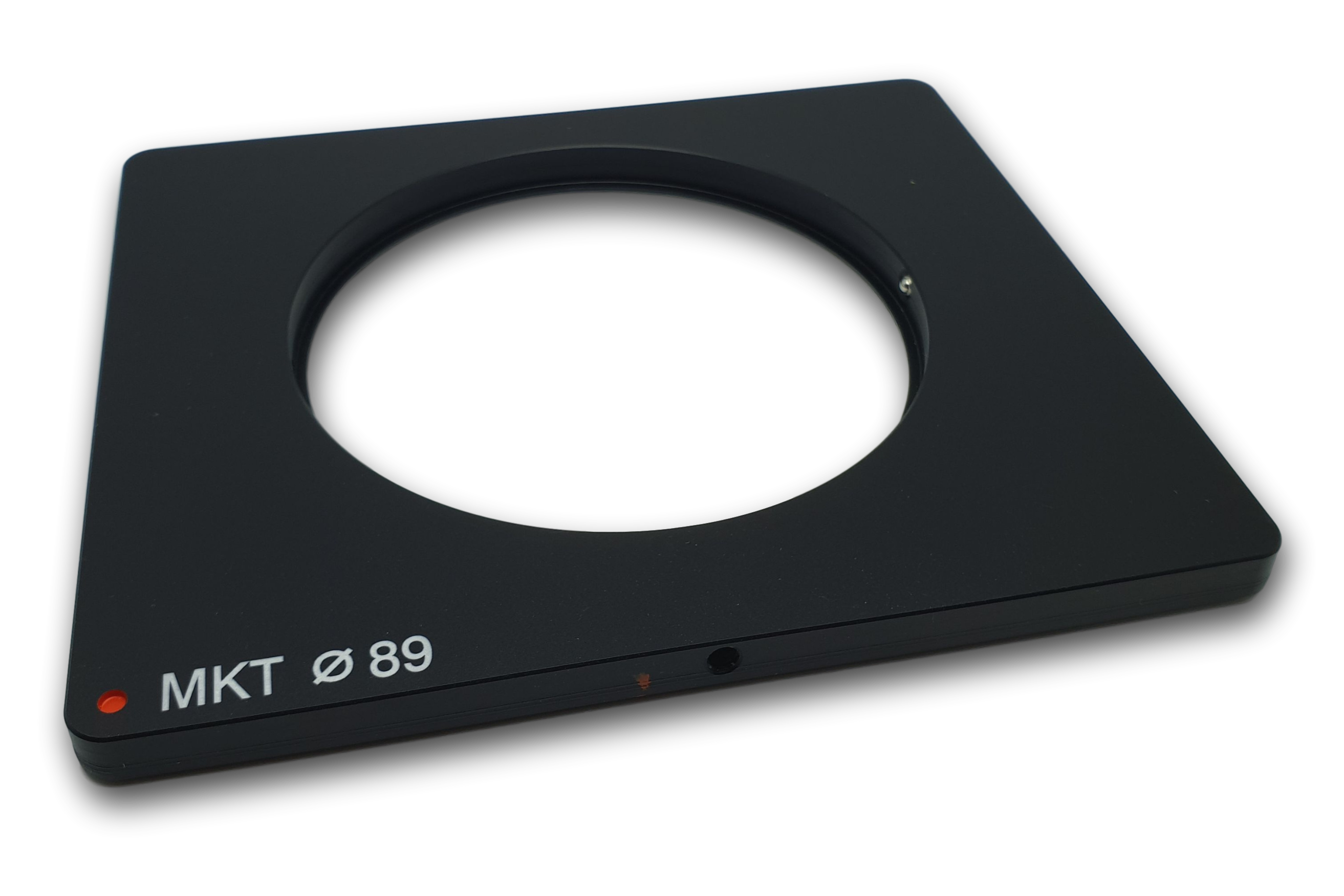

CC3007 Stage adapter Petri dish 89 mm
Stage adapter, Petri Dish Ø 89 mm
Adapter to place a Petri Dish with a diameter between 82 mm and 88.5 mm onto the microscope stage
CC3004

Stage adapter, Petri Dish Ø 60 mm
Adapter to place a Petri Dish with a diameter between 52 mm and 55 mm onto the microscope stage
CC3008

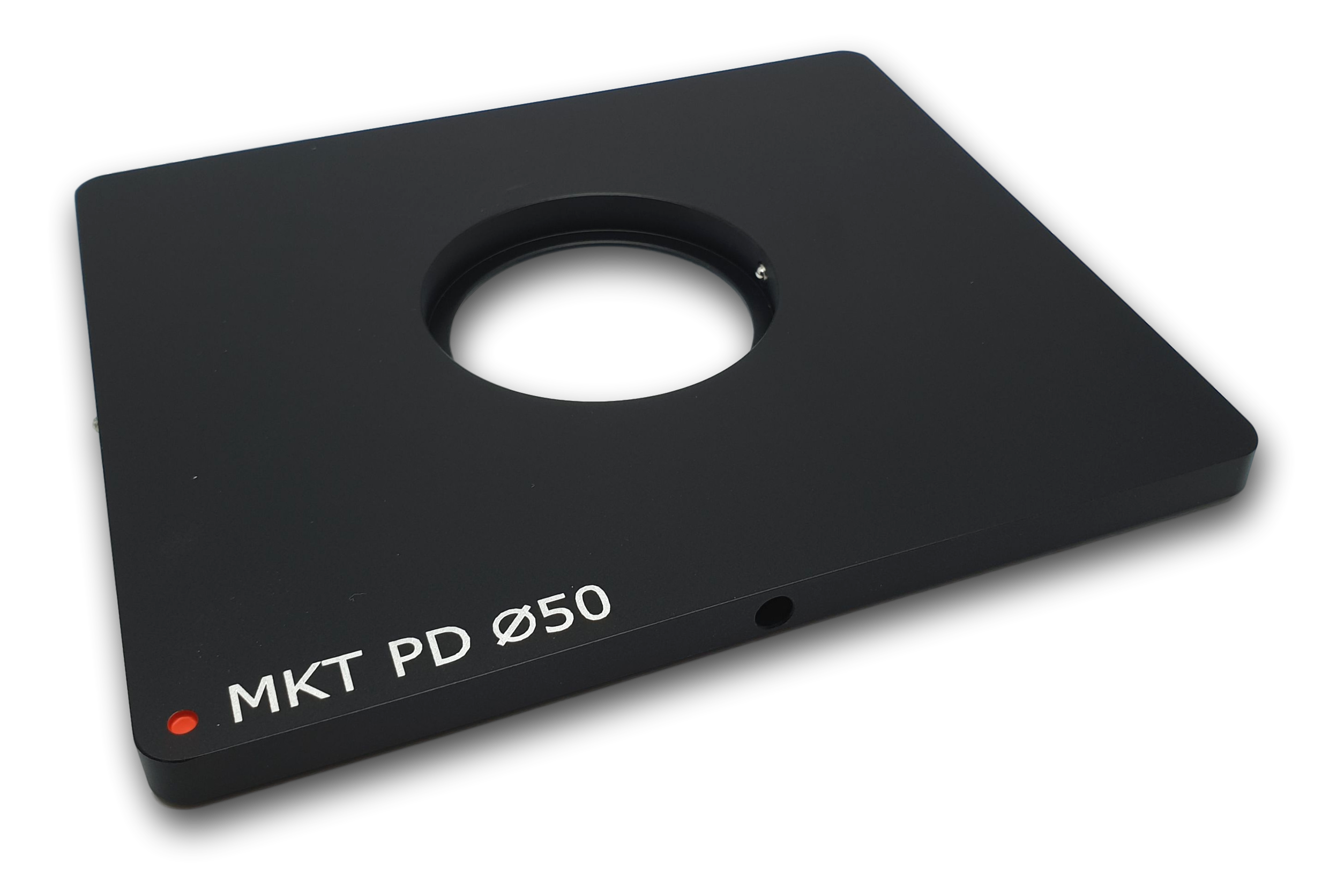

CC3008 Stage adapter Petri dish 50 mm
Stage adapter, Petri Dish Ø 50 mm
Adapter to place a Petri Dish with a diameter between 48mm and 50mm onto the microscope stage
CC3005

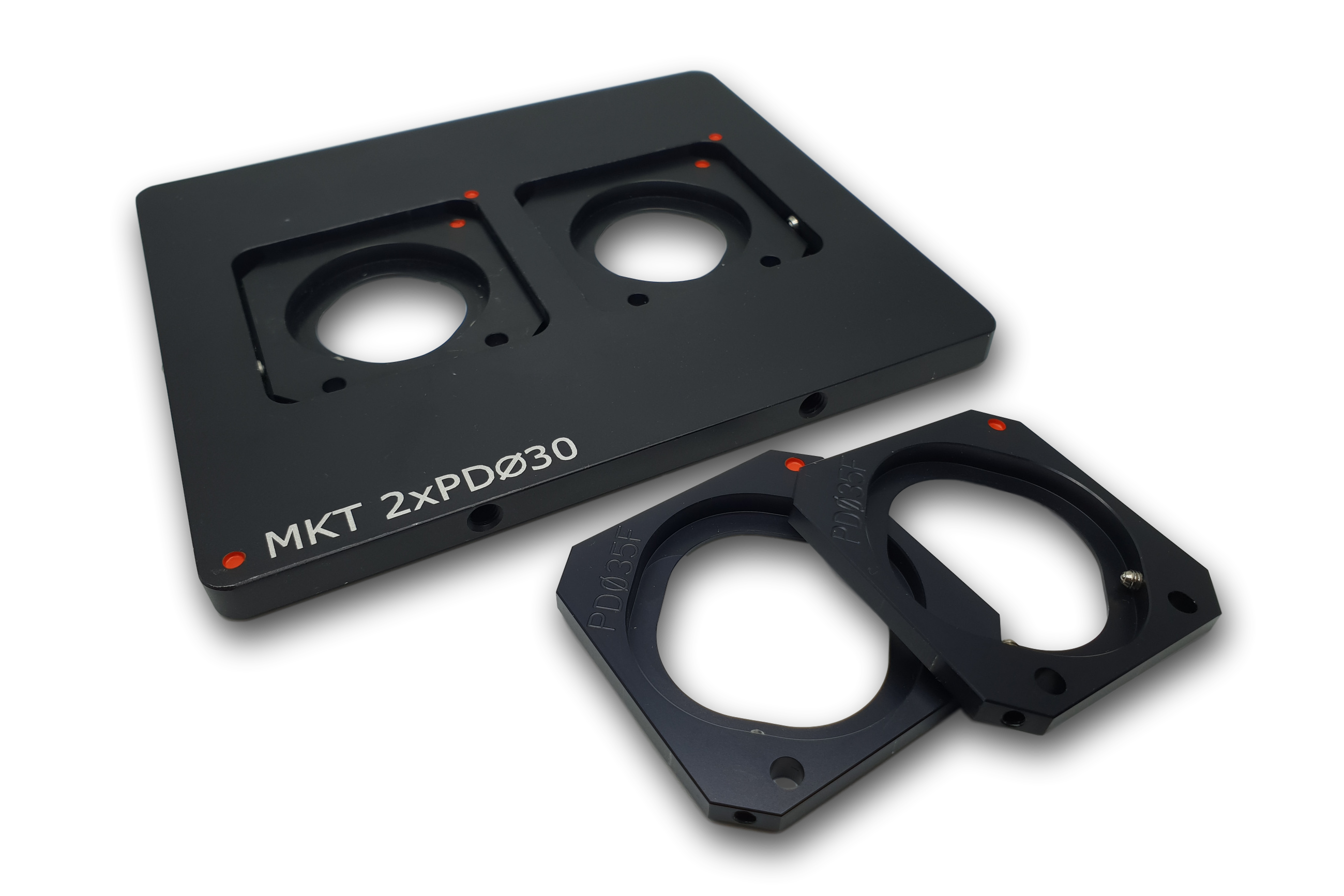

CC3005 Stage adapter 2 x Petri dish 35 mm
Stage adapter, 2x Petri Dish Ø 35 mm
Adapter to place two Petri Dishes with diameters between 32mm and 40mm onto the microscope stage
CC3006

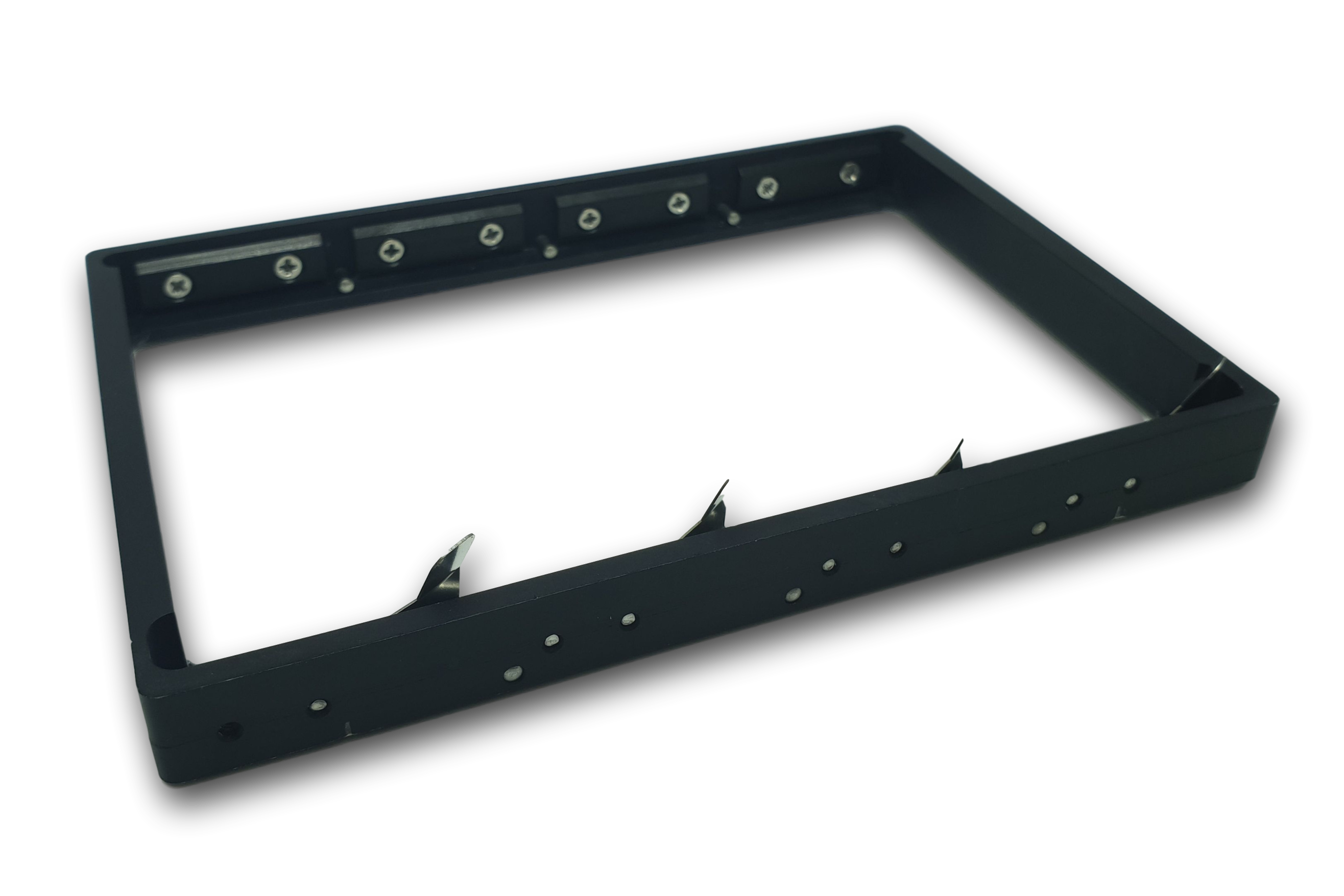

CC3006 Microplate adapter, microscope slides
Microplate adapter, microscope slides
Adapter to place up to 4 standard microscope slides or nanowell array slides onto the microscope stage; adapter is placed into Microplate stage adapter (CC3001) (see page Nanowell arrays)
CC3019

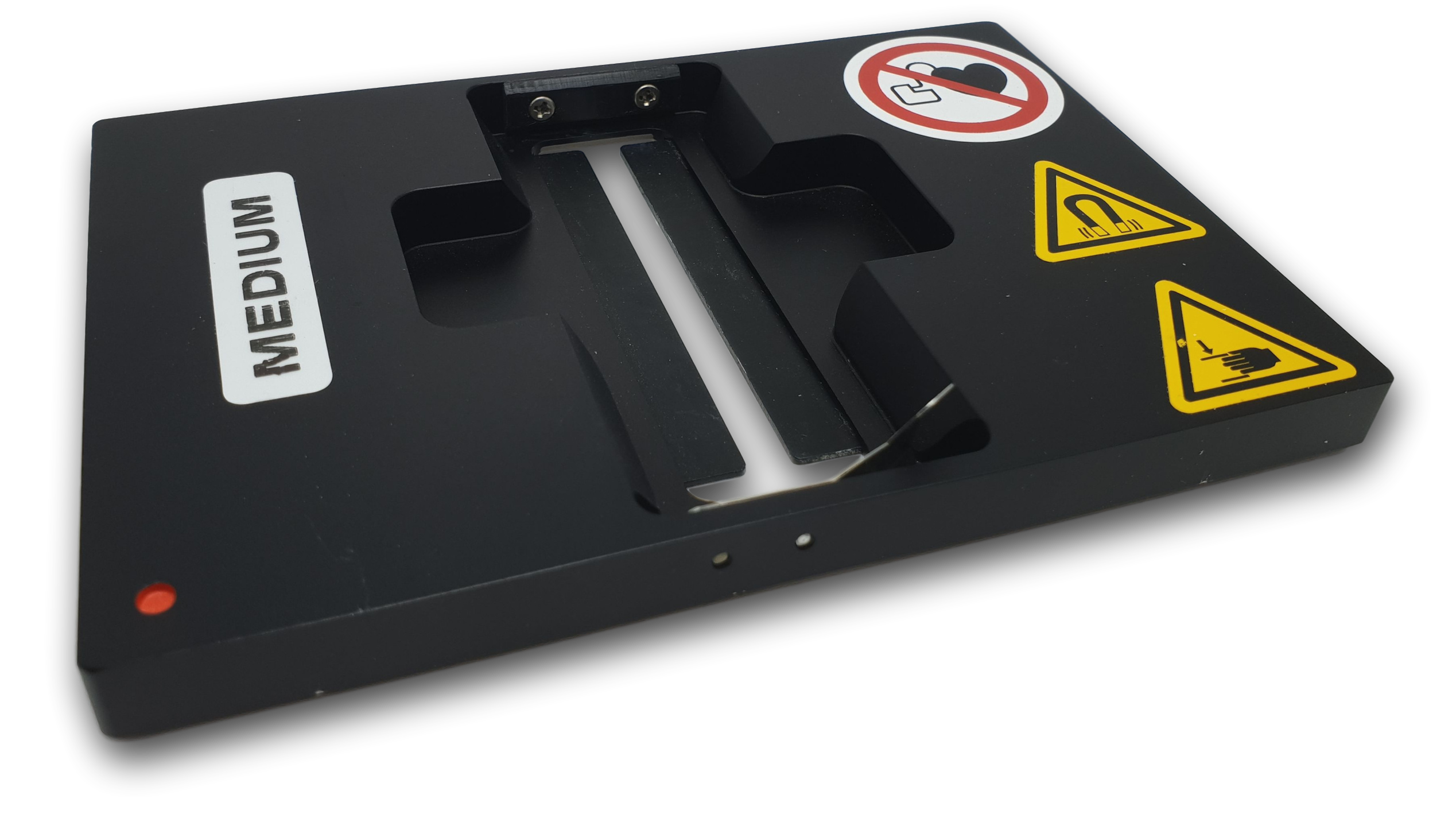

CC3019 Microplate adapter Magnet Pick
Microplate adapter, MagnetPick™ 300
Adapter to place one MagnetPick 300 slide onto the microscope stage;
adapter is placed into Microplate stage adapter (CC3001); includes 1 pack of 72 x MagnetPick 300 glass slides (see also page MagnetPick Adapter & Slides)

Deck tray (destination) adapters

The ALS CellCelector can be equipped with a standard or a cooled deck tray. The standard deck tray includes  2 destination positions for cell culture microplates (Target 1 and Target 2 slots). You can complete the configuration with adapters allowing the deposition of cells and colonies to PCR tubes/plates, microscope slides, additional well plates and other specific consumables.

The cooled deck tray does not include any adapters. Therefore you can choose the adapters most suitable for your application needs and requirements.
Catalog No.

Description
Standard deck tray
Cooled deck tray
CC3014

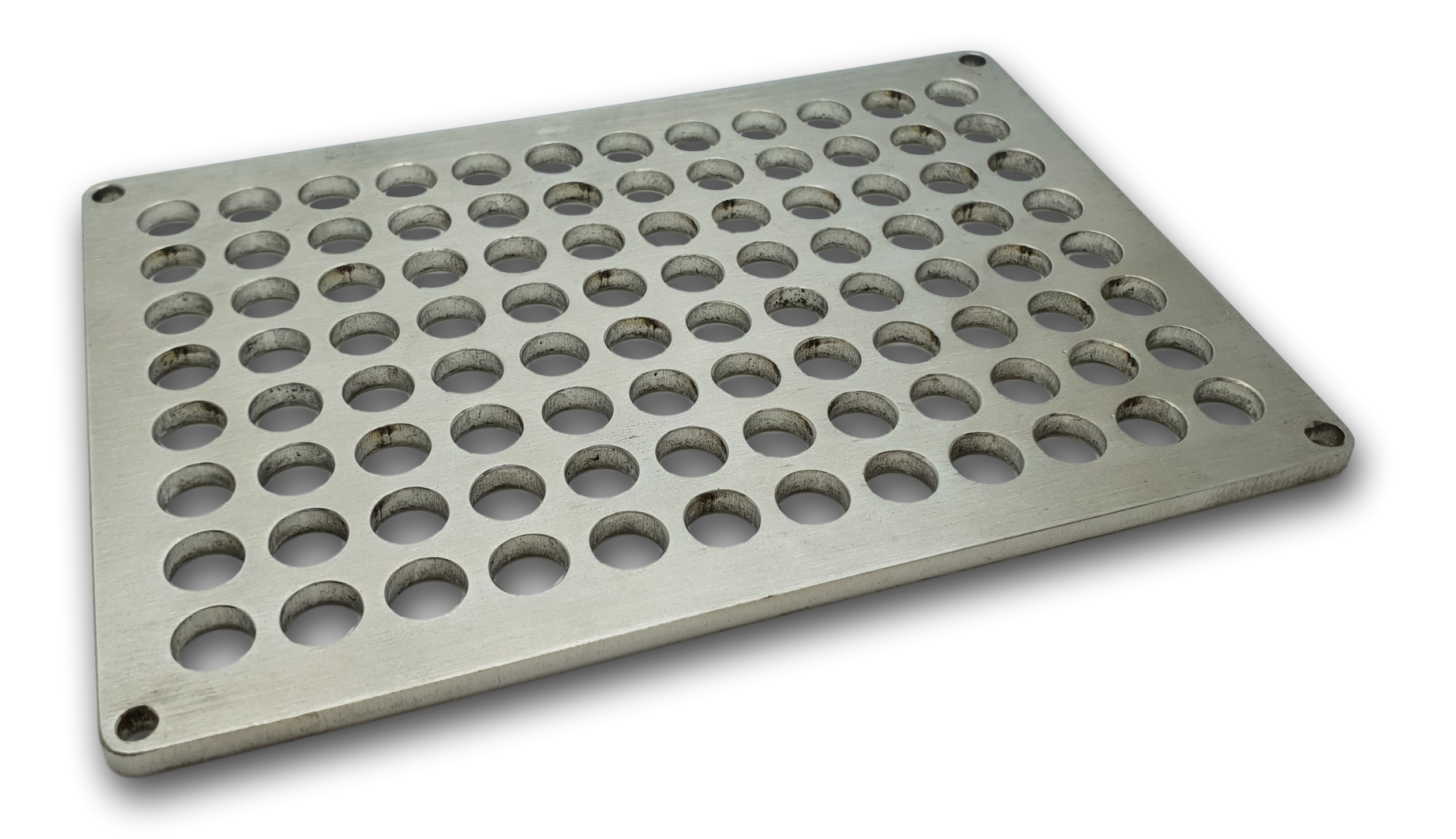

CC3014 Destination adapter PCR tubes
Destination adapter, PCR tubes
Adapter to place individual PCR tubes (0.1 or 0.2 ml), PCR tube strips or tube lids on a universal slot of the Deck Tray; Includes container to be used with dry ice for passive cooling
CC3024U

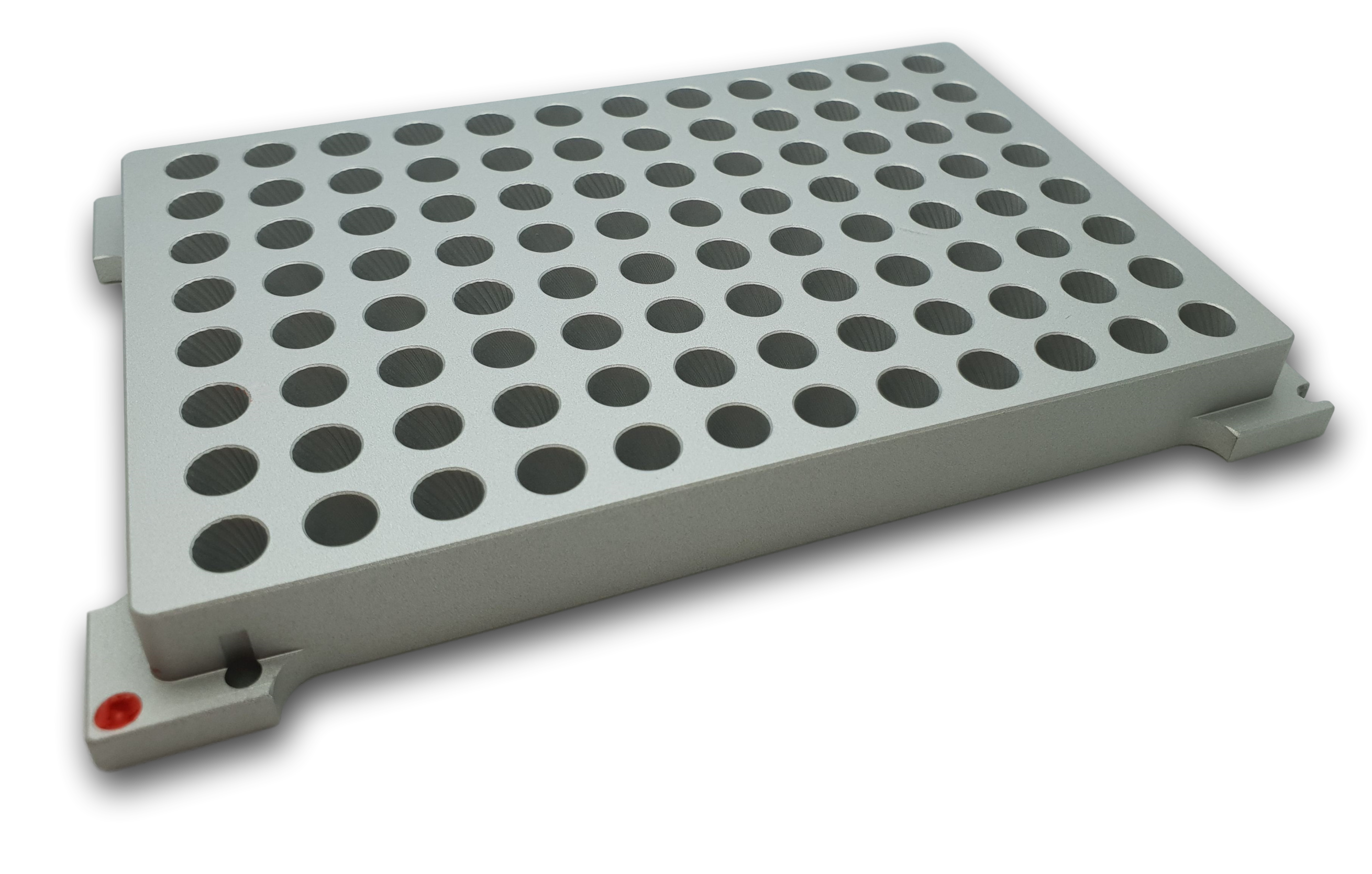

CC3024U Destination adapter well plate (96 well PCR-plate)
Destination adapter, well plate (96 well PCR-plate)
Adapter to place a 96 well PCR plate, individual 0.1 or 0.2 ml PCR tubes as well as tube strips onto the standard Deck Tray; can be used in slots Tips 2 and 3
CC3025U

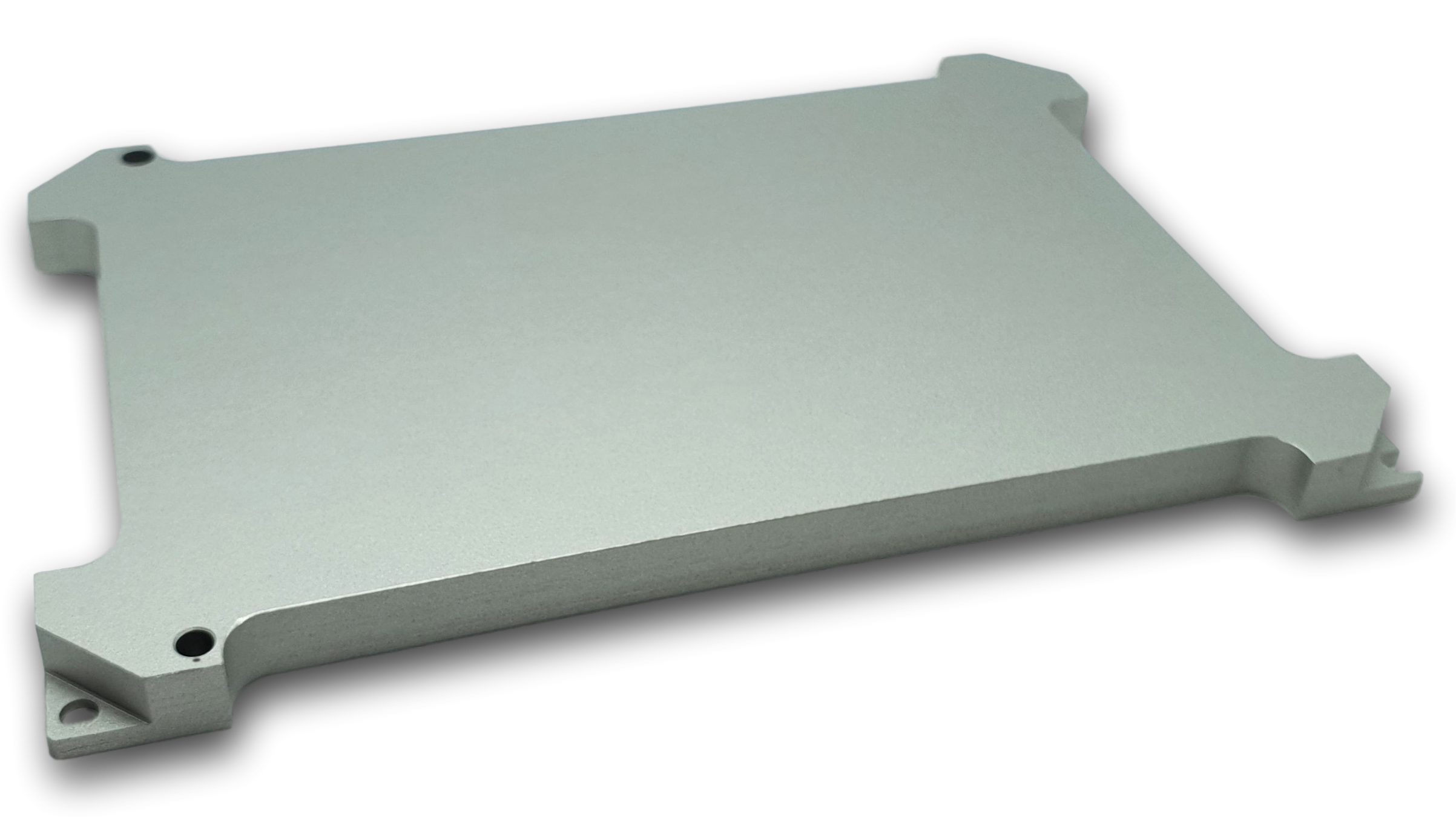

CC3025U Destination adapter, well plate (F- or U-Bottom plates)
Destination adapter, well plate (F- or U-bottom plates)
Adapter to place a F- or U-bottom microplate onto the standard Deck Tray; can be used in slots Tips 2 and 3
CC3026U

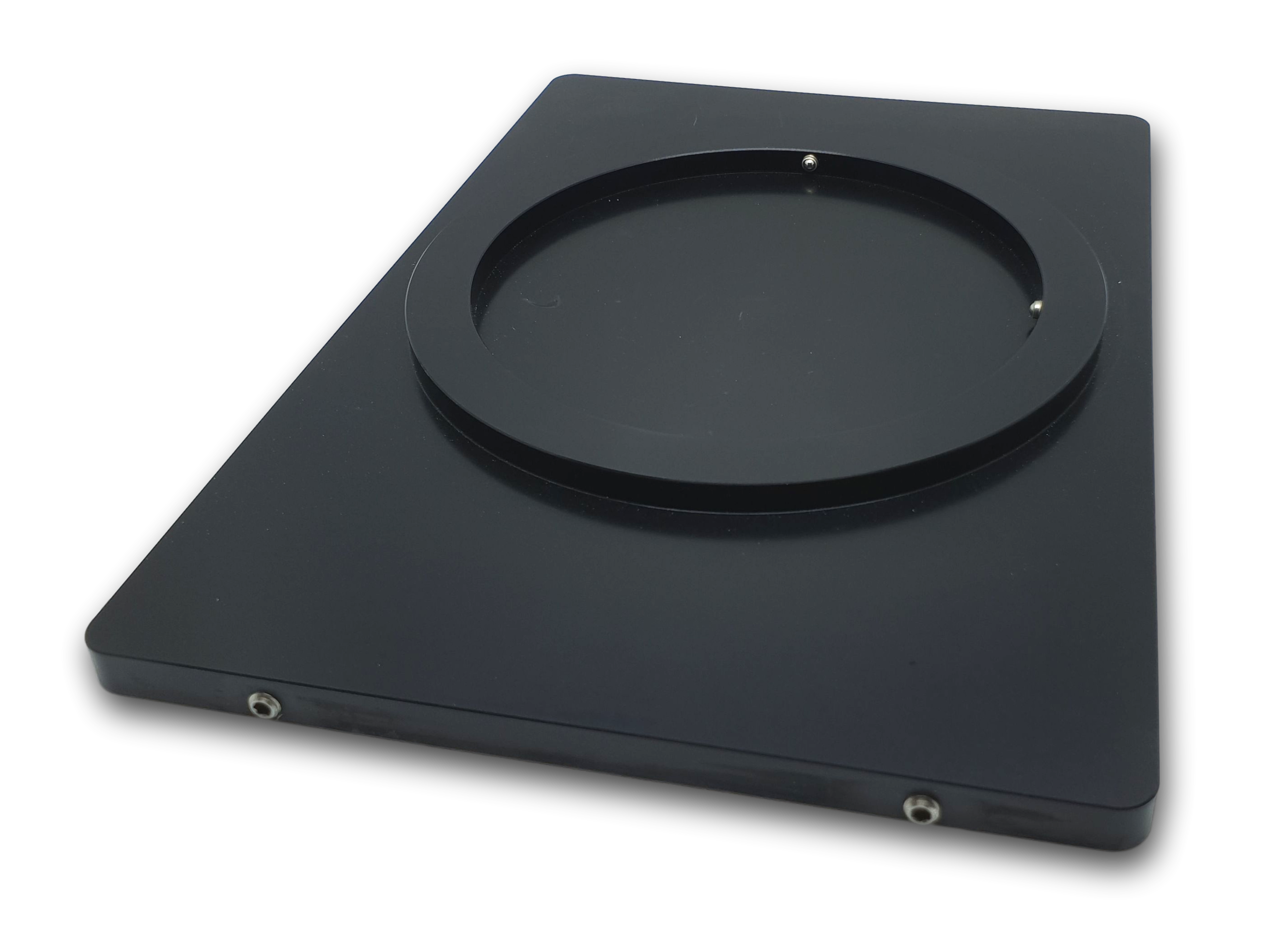

CC3026U Destination adapter Petri dish 93 mm
Destination adapter, Petri Dish Ø 93 mm
Adapter to place a 93 mm diameter standard Petri Dishes onto the standard Deck Tray; will occupy both Target 1 and 2 slots
CC3013U

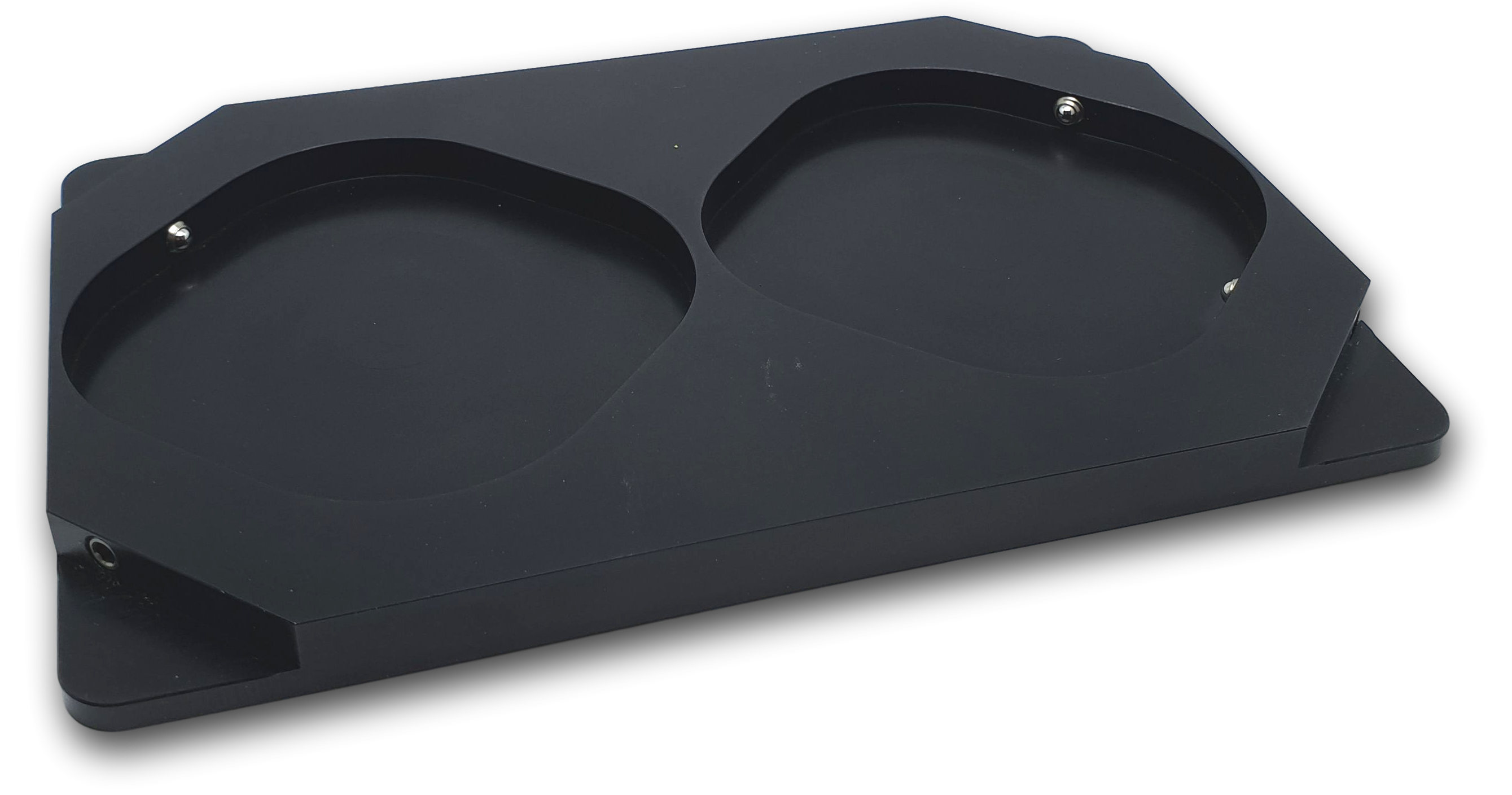

CC3013U Destination adapter 2 x Petri dish 60 mm
Destination adapter, 2x Petri Dish Ø 60 mm
Adapter to place up to two 60mm diameter standard Petri Dishes onto the standard Deck Tray; can be used in slots Target 1 and 2
CC3012U

Destination adapter, 2x Petri Dish Ø 40 mm
Adapter to place up to two 40mm diameter standard Petri Dishes onto the standard Deck Tray; can be used in slots Target 1 and 2
CC3011U

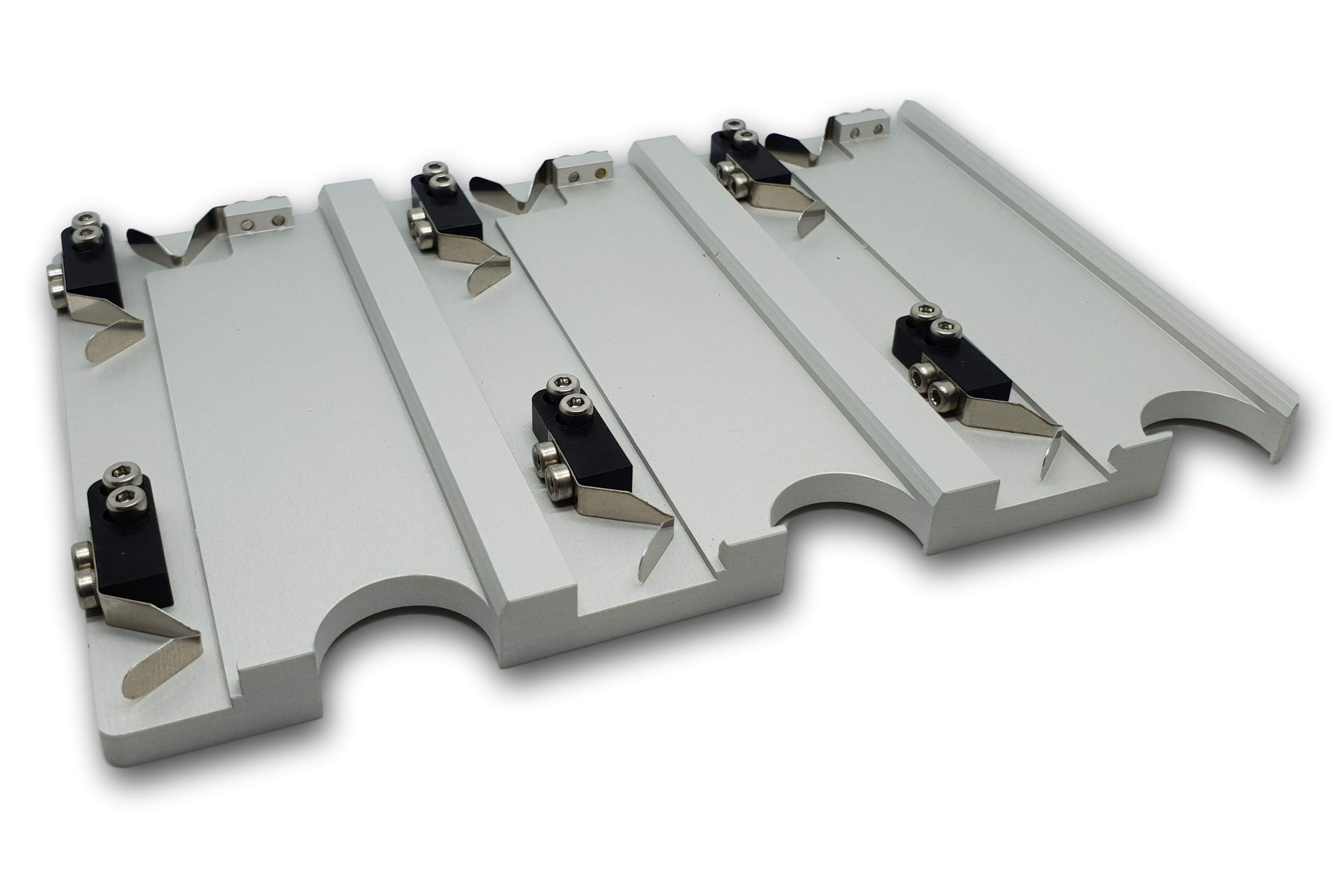

CC3011U Destination adapter microscope slides
Destination adapter, microscope slides
Adapter to place up to three standard microscope slides or AmpliGrids onto the standard Deck Tray; can be used in slots Target 1 and 2
CC3027C

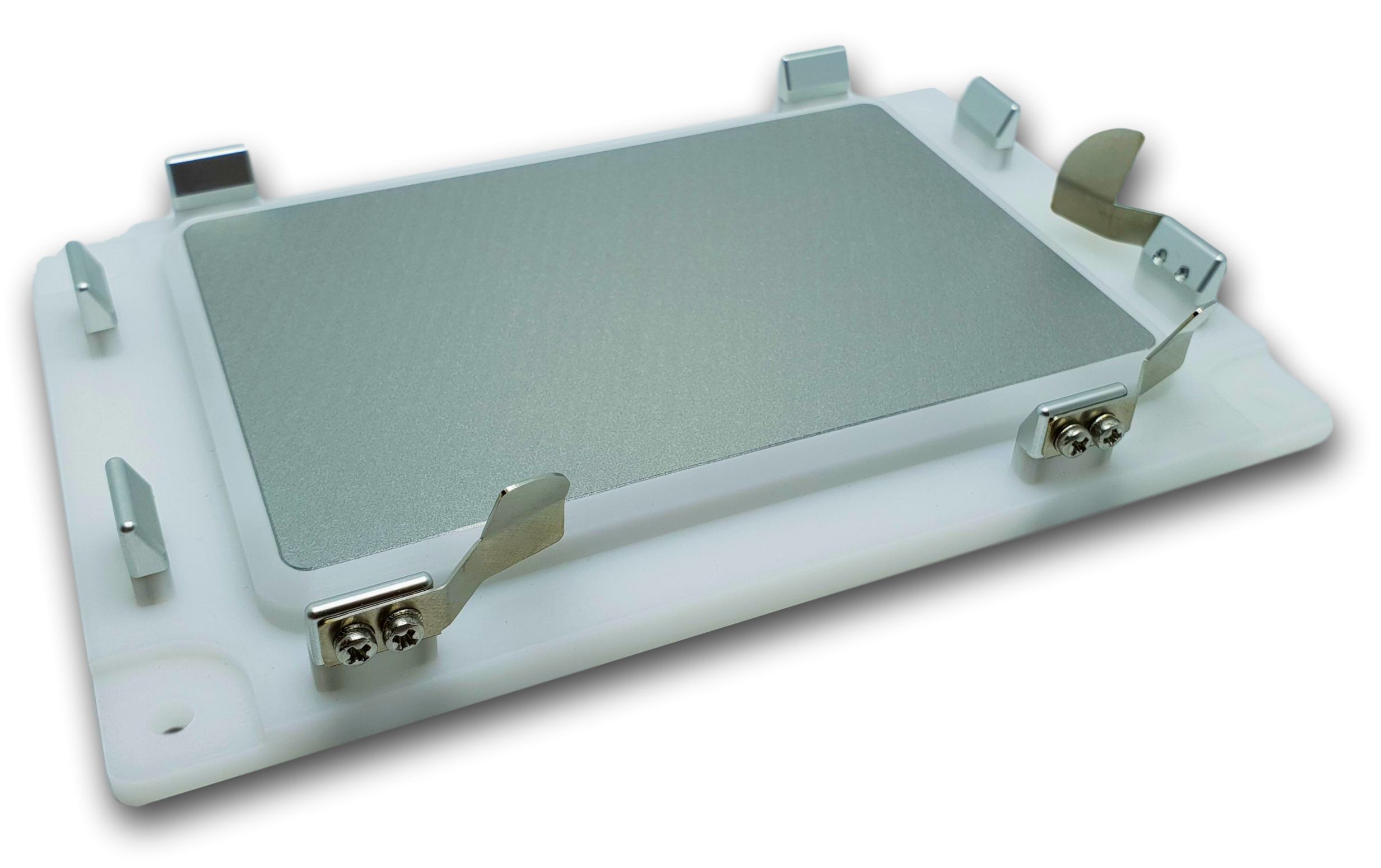

CC3027C Destination adapter F-bottom microplates
Destination adapter, F-bottom Microplates
Adapter to place a F-bottom microplate onto the cooled Deck Tray; can be used in slots Target 1 and 2
CC3028C
CC3028C Destination adapter PCR plate 96 well / PCR tube
Destination adapter, PCR plate 96 well / PCR Tubes
Adapter to place a 96well PCR plate or individual PCR tubes (0.1 or 0.2 ml) onto the cooled Deck Tray; can be used in slots Target 1 and 2
CC3029C

Destination adapter, PCR plate 384 well
Adapter to place a 384 well PCR plate onto the cooled Deck Tray; can be used in slots Target 1 and 2
CC3030C

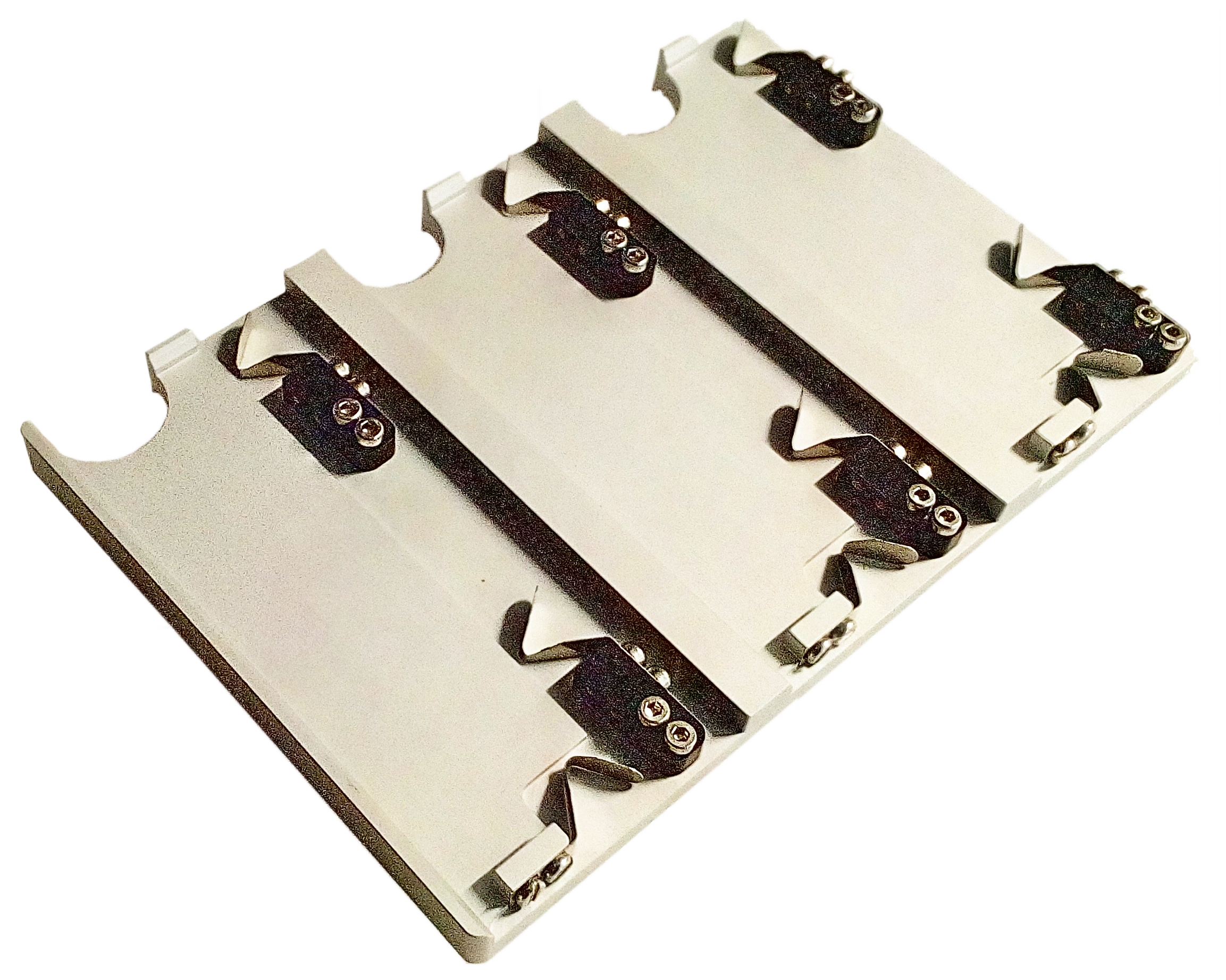

CC3030C Destination adapter microscope slides
Destination adapter, microscope slides
Adapter to place up to 3 microscope slides onto the cooled Deck Tray; can be used in slots Target 1 and 2

Miscellaneous

Besides source and destination plate adapters we offer additional useful accessories around the CellCelector™ system.
Catalog No.

Description
CC3034

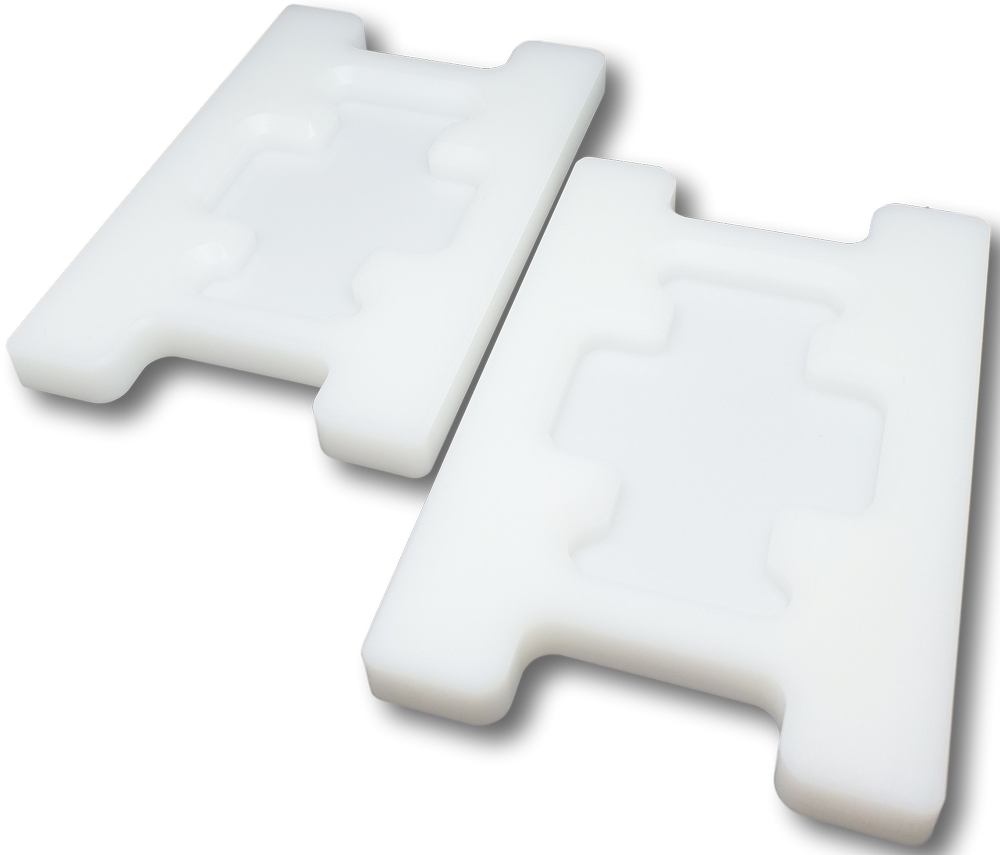

Microscope slide adapters for centrifuge
Microscope slide adapters for centrifuge
Set of 2 microscope slide adapters for centrifuging; Used in CellCelector Nanowell slide protocol; Standard microplate footprint. Compatible with any microplate centrifuge adapter.
CC7696A

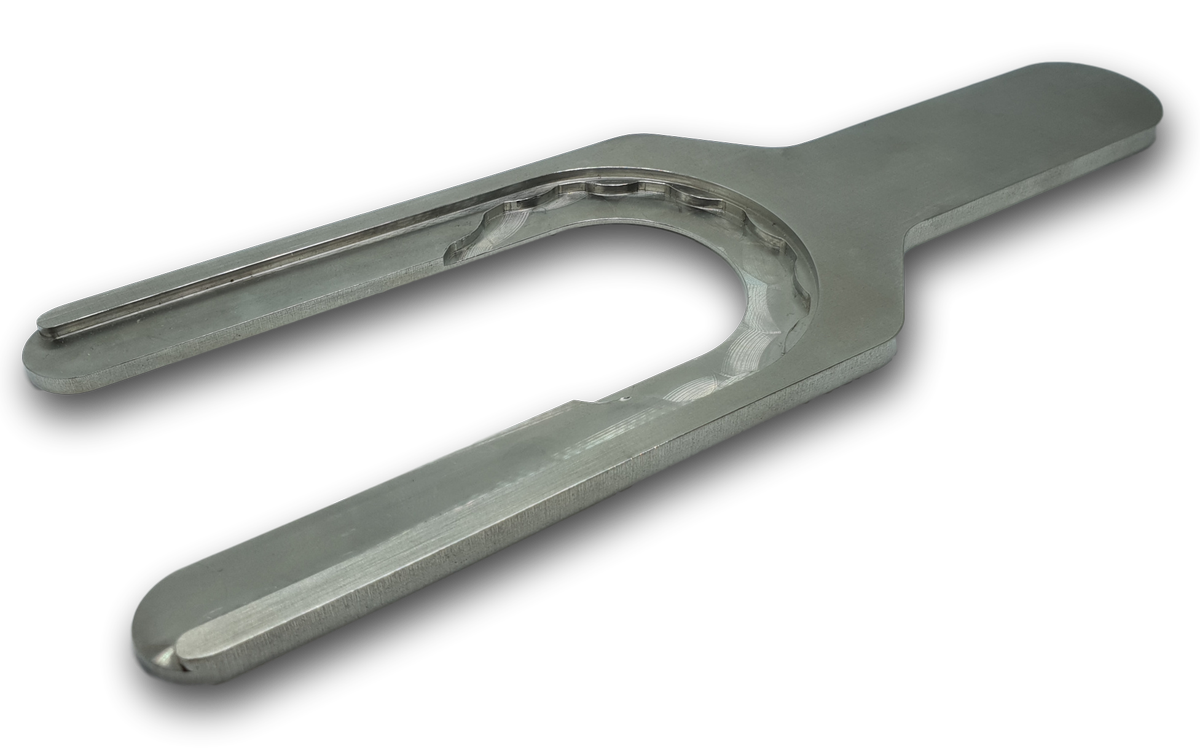

Tool for picking module exchange
Tool for picking module exchange
Tool for easy release and locking of picking modules on the CellCelector™ robot arm
CC7698

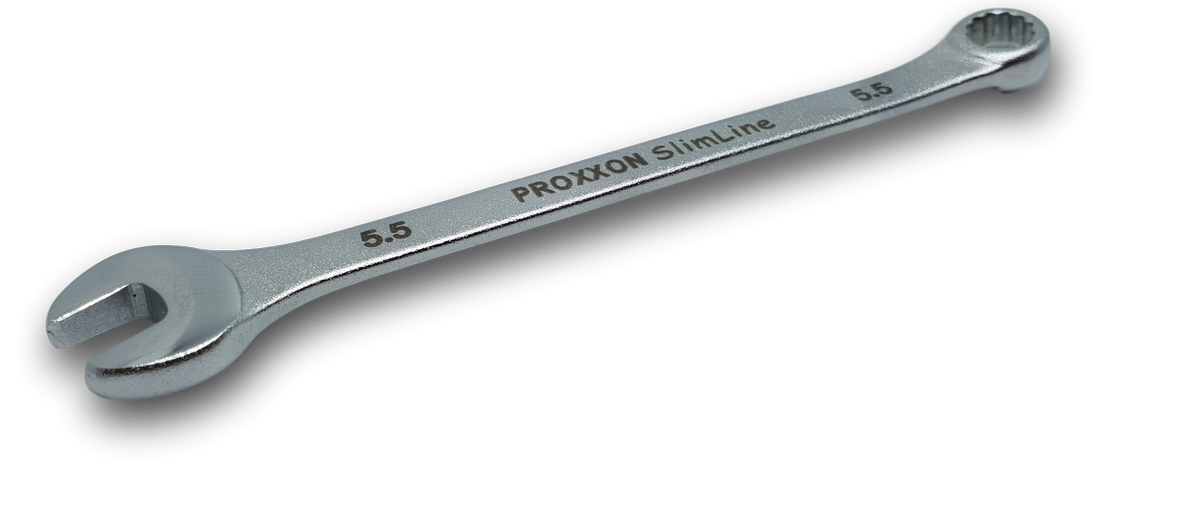

5.5 mm wrench for capillary and tubing replacement
5.5 mm wrench for capillary and tubing replacement
Wrench used for exchange of single cell glass capillaries and tubing
Please note: Some adapters might require additional calibration and setup in the CellCelector software. Please contact us for further information.
Do you need additional accessories or special adapters tailored to your application requirements?
